Post Drivers | Expander 2i Telescopic Mast

The Kinghitter Expander 2i is the ultimate drop-hammer post driver for all fencing requirements, built to outperform others for speed, driving force, and usability.

A telescopic mast extends from 3.2 m to 5.1 m, allowing you to drive any post type up to 4.0 m even when headroom is limited.

The 300 kg hammer delivers class-leading driving force by running at optimum efficiency with minimal restriction and fast cycle times.

Fitted with Kinghitter’s Safety Post Cap, the operator has completely safe directional control of every post. The guard protects the operator from the hammer’s strike zone along its entire stroke to the ground. It also secures each post in an upright position while driving, allowing the operator to steer the post from behind the safety gate.

The Expander 2i is compatible with the entire range of Kinghitter Base combinations and Accessory options, ensuring you get a post driver package that suits your ground conditions, fencing requirements, and personal preferences.

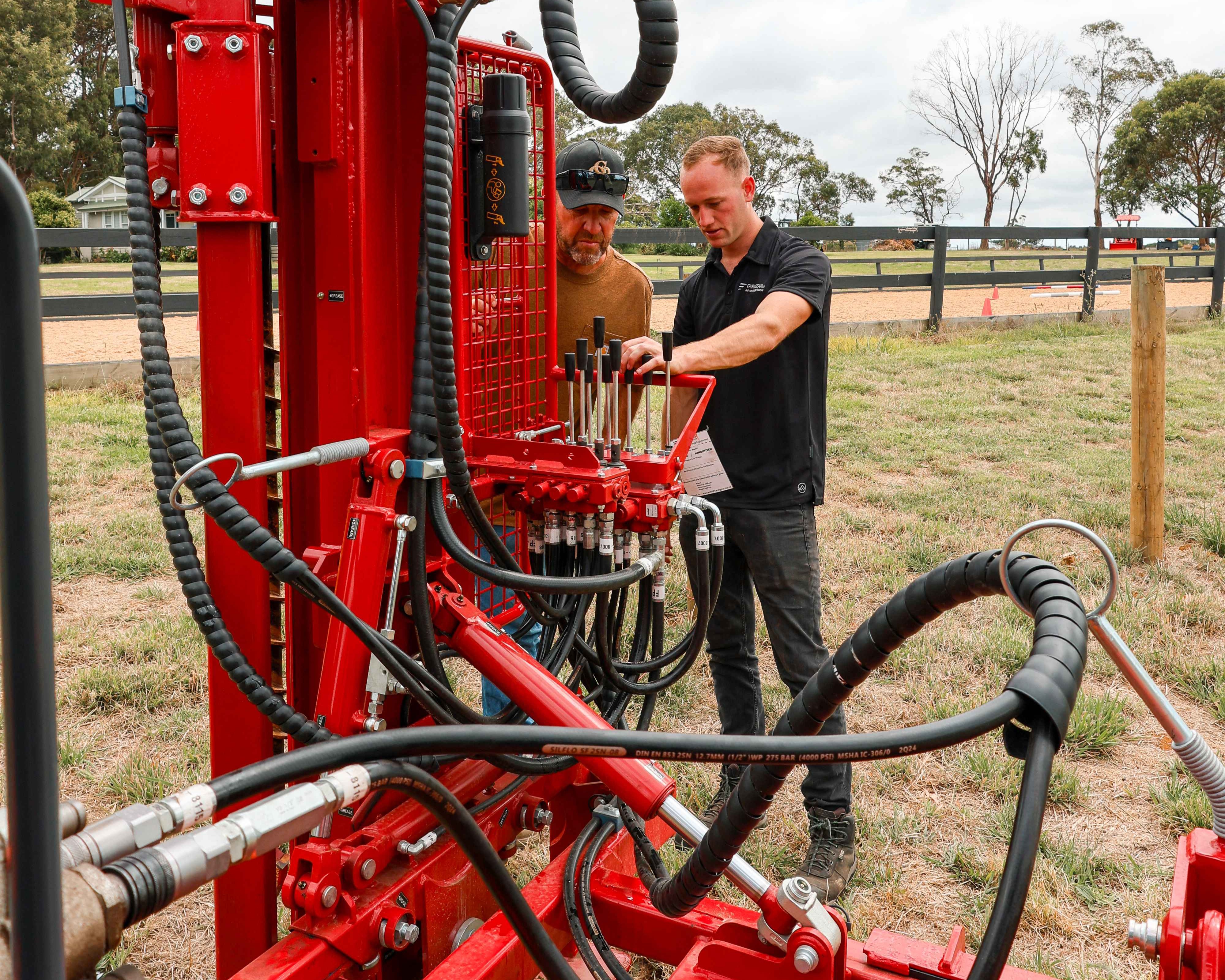

The operator can stay in control 100% of the time, with Hammer Lift/Lower, Toplink, Angle Tilt, Mast Expand, and Base adjustments all at fingertip control, using Kinghitter’s ergonomic valve bank positioning system.

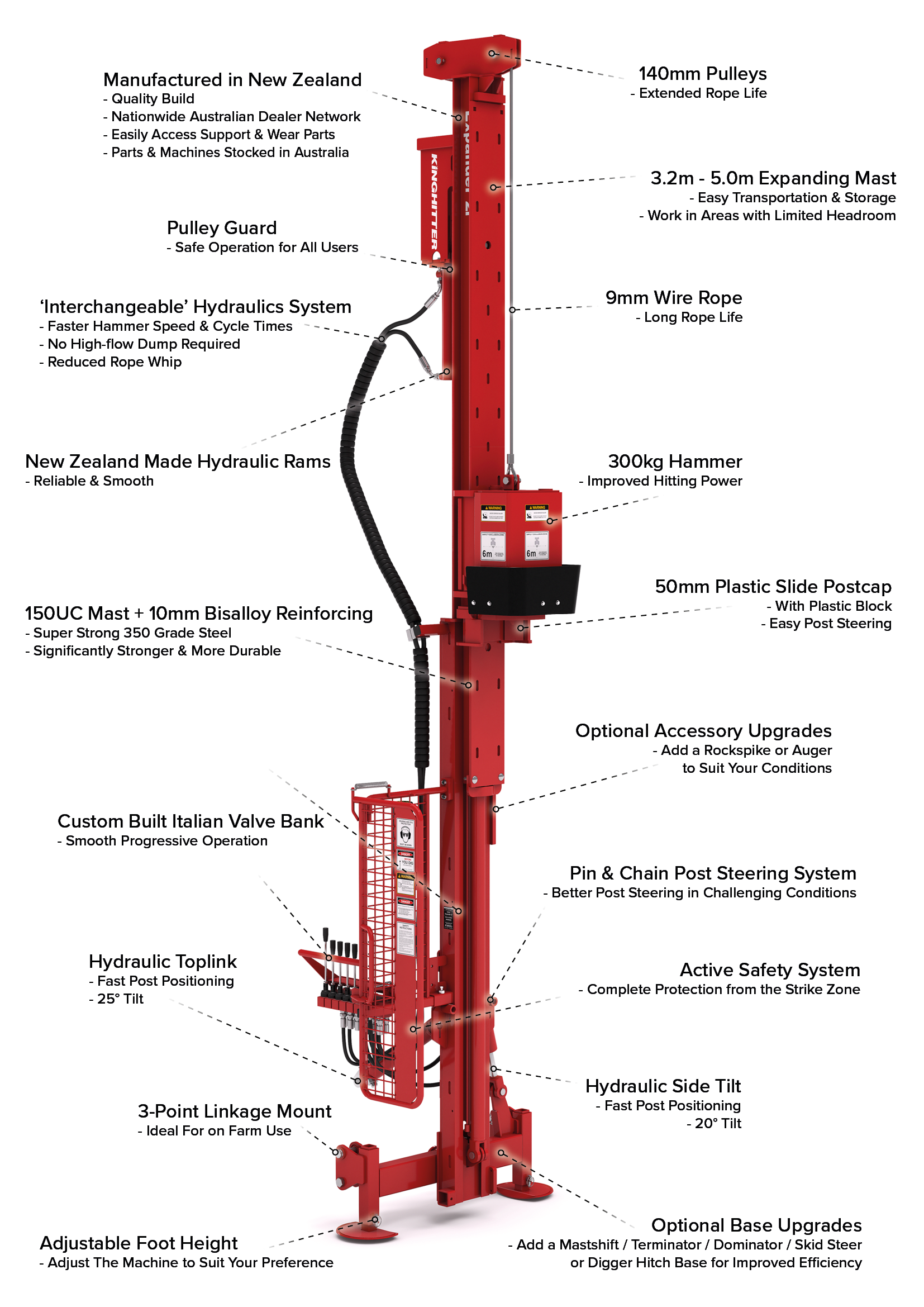

Expander 2i Post Rammer | New Features

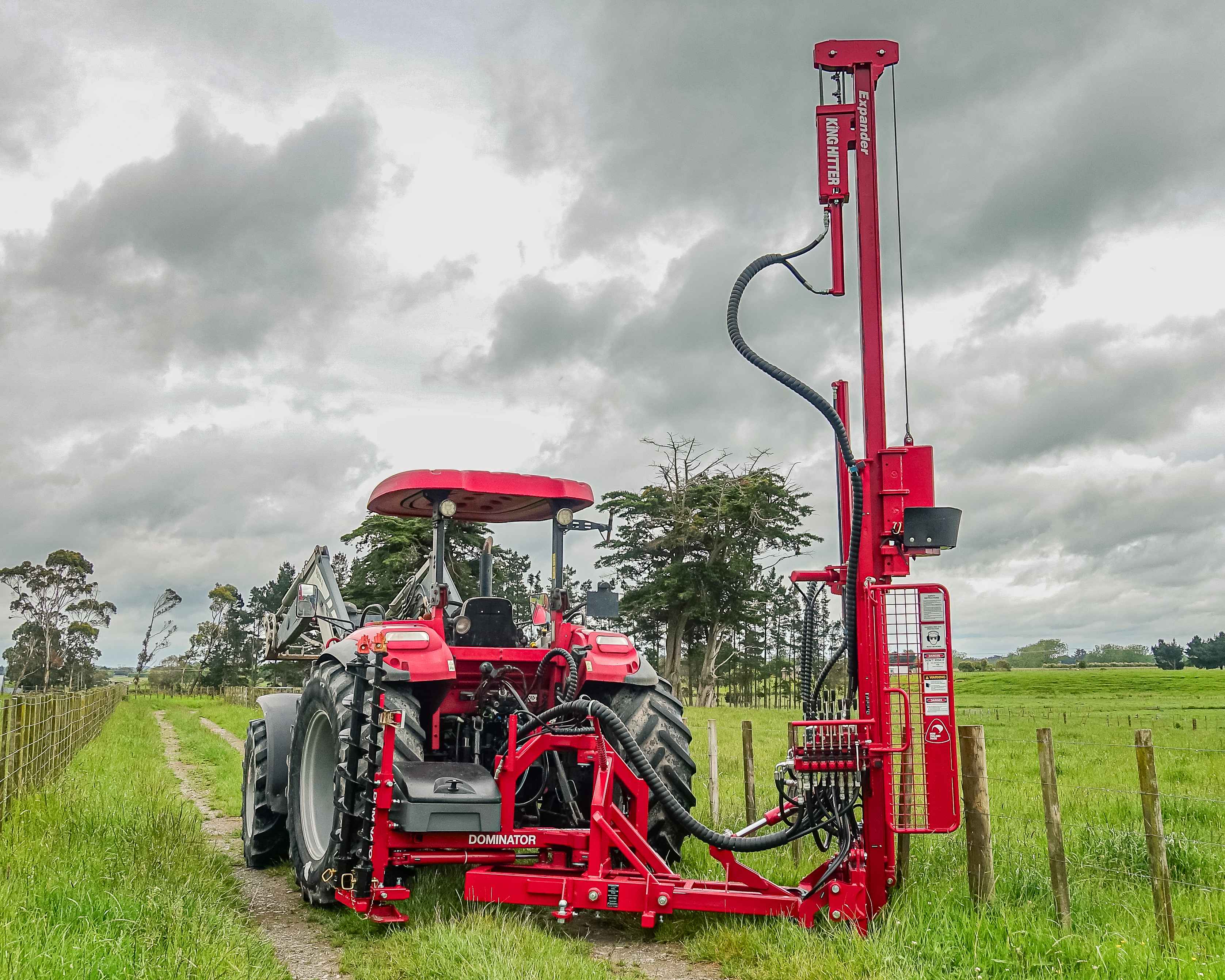

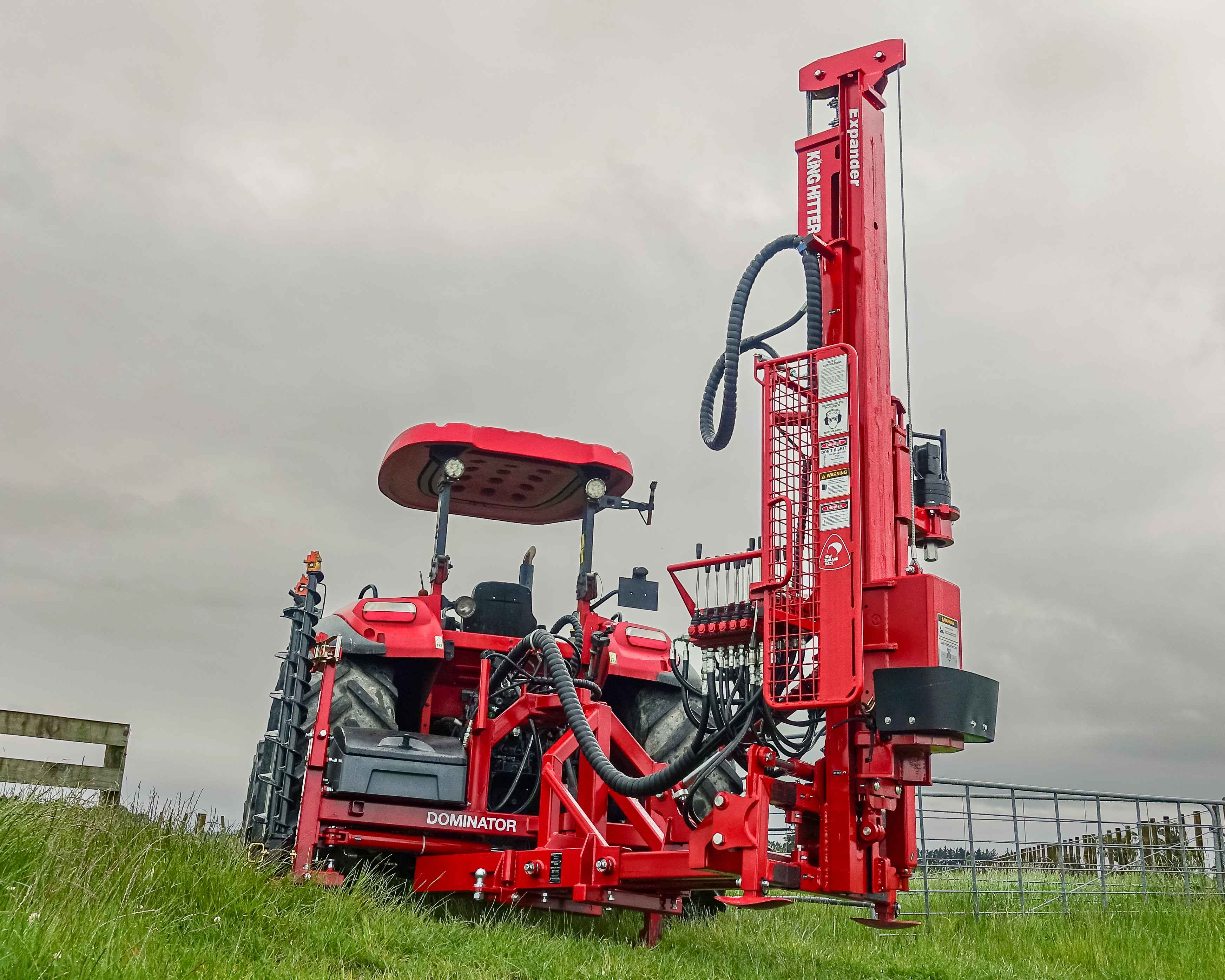

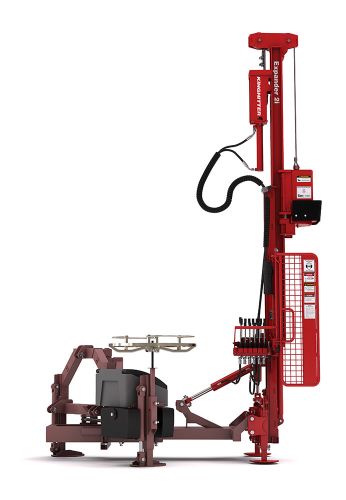

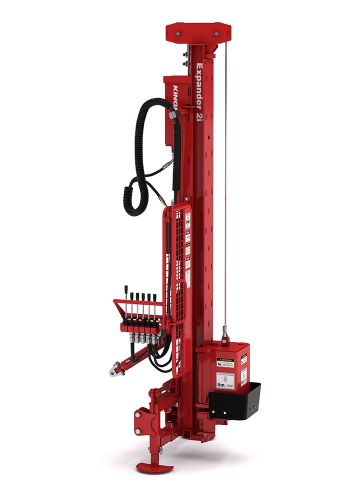

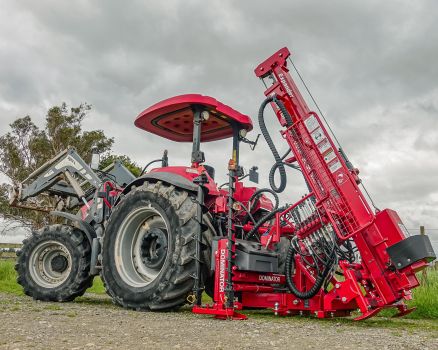

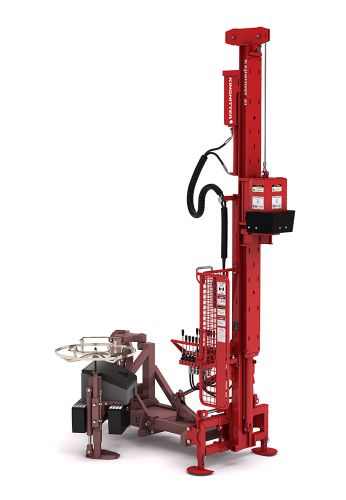

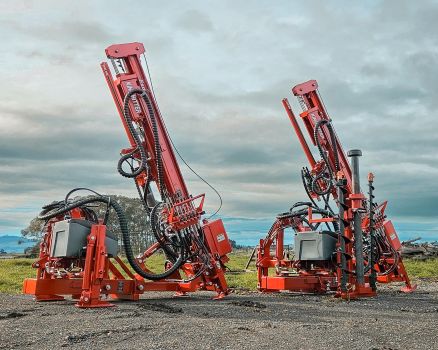

Clearcut Photos | Expander 2i

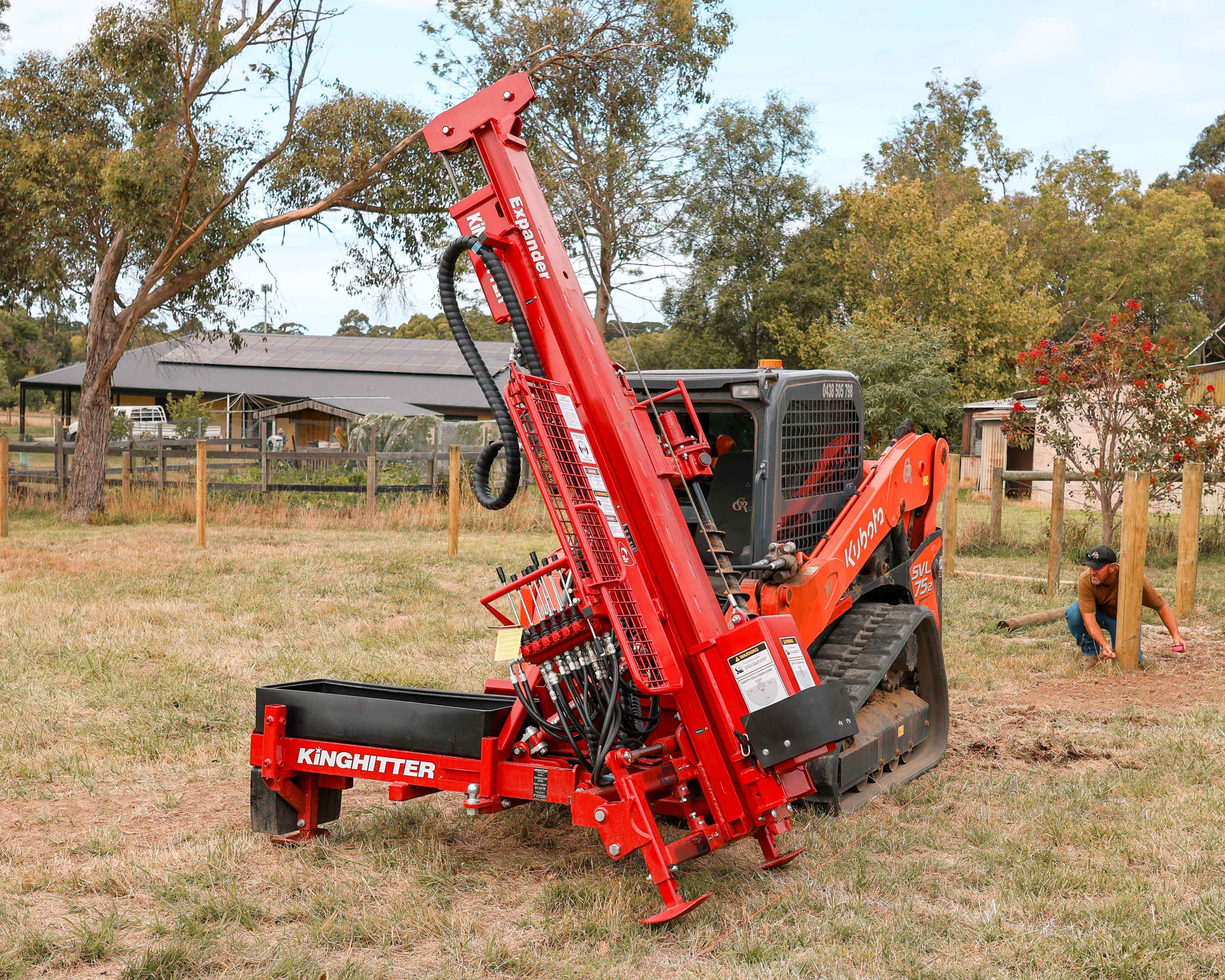

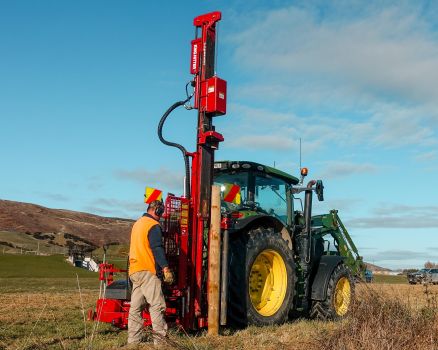

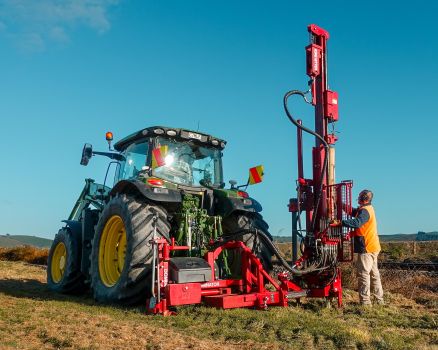

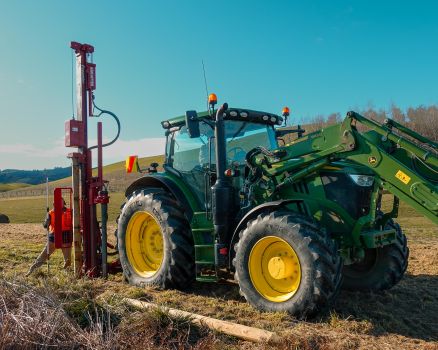

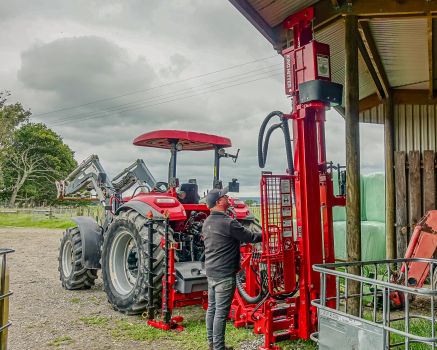

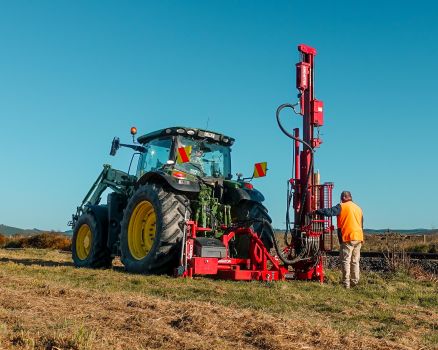

In Action | Expander 2i

Expander 2i | Standard Specifications

The Expander 2i is the ultimate drop-hammer post driver, designed to outperform others for speed, driving force, and usability. Its telescopic mast expands from 3.2 m to 5.1 m, giving you the ability to drive posts up to 4.0 m (13 ft) even when headroom is limited. The 300 kg (660 lb) hammer delivers powerful, efficient driving force, while the 25° side tilt and 25° hydraulic toplink provide excellent post positioning control across uneven terrain. The 50 mm guarded Safety Postcap keeps the operator protected and maintains secure control of the post during driving.

Hydraulic functions are controlled through a 6+ function high-flow valve bank for smooth, responsive operation. Every aspect of the Expander 2i is engineered to maximise productivity in real-world conditions, making it a highly capable choice for contractors and farmers who need reach, power, and precise control on the fence line.

Finding the right post driver for your conditions isn’t always easy.
They vary in weight, price, and functionality – Contact us and we’ll help you identify the right model for your requirements.
Talk to our team

Mast Height	3.2 – 5.1 m Telescopic Mast
Maximum Post Height	4.0 m (13’)
Valve Bank	6+ Function High-Flow Valve Bank
Hammer	300 kg (660 lb)
Toplink Tilt	25° Fore / Aft
Side Tilt	25° Left / Right
Safety Postcap	50 mm Guarded

VIEW FULL SPECS | Expander 2i Post Rammer

Expander 2i Post Rammer Specifications

The Ultimate Post Driver Setup | Expander 2i & Dominator Rotational Base

In this video, the YouTuber Kiwi Farmer and Jack from Kinghitter take you through a hands-on look at the Expander 2i post driver paired with the Dominator Rotational Base — Kinghitter’s flagship setup for serious fencing contractors and farmers.

Postcap Post Steering | Feature Highlight

Get an easier, safer post installation system with Kinghitter post drivers. Our unique post cap system provides precise post steering control, allowing you to position and drive posts with minimal manual effort — and no more podgy bars.

Steer posts securely with the post cap.
Adapt to timber, steel, and concrete posts with interchangeable caps.
Reduce operator fatigue and boost efficiency.

You’ll also see the impact zone guard for safer post driving and the bolt-on shroud system for different post shapes.

As the post is driven into the ground, the top gets lower and the impact zone moves. Kinghitter’s guard mounts to the Safety Postcap and travels with the strike zone, protecting the operator over the hammer’s full stroke.

*The machine shown in this video is a Series 2i 450, however, the same build quality applies to all Kinghitter post drivers, includng the Expander 2i.

The Cable System | Feature Highlight

The Series 2i rigid post driver uses Kinghitter’s proven rope & pulley lift system, delivering a true 6:1 lift ratio—every 100 mm of ram stroke lifts the hammer 600 mm. This system creates a faster post rammer hammer cycle, a longer free-fall stroke, and powerful driving force for tall, hard-set posts. The lift ram on the post banger is fully isolated from shock and vibration, reducing heat, minimising seal wear, and extending long-term reliability.

Kinghitter’s next-generation hydraulic lift ram and cable system also improves overall machine efficiency. The double-acting hydraulic lift ram design reduces oil temperature and lowers strain on your tractor pump, keeping your hydraulic system running cooler and more efficiently. Cable life is maximised through high-grade wire rope, modern pulley geometry, and reduced cable whip.

*The machine shown in this video is a Series 2i 450, however, the same build quality applies to all Kinghitter post drivers, includng the Expander 2i.

Hydraulic Angle Tilts | Feature Highlight

Struggling with post driving on uneven terrain? The Kinghitter range is built to handle it — making every fence line faster, straighter, and safer.

In this video, we take a closer look at the features that set Kinghitter post drivers apart when working on challenging ground conditions:

25° of Tilt Adjustment — Achieve perfectly vertical posts on hillsides and slopes with generous forward/back and side-to-side tilt.
Hydraulic Control System — Smooth, responsive control of your side and top-link tilt makes setup simple and efficient.
Proven Kinghitter Reliability — Built tough in New Zealand with a reputation for reliability and performance earned over decades in the field.

If you’re ready to improve your fencing game, this video shows why more farmers and fencing contractors choose Kinghitter.

*The machine shown in this video is a Series 2i 450, however, the same build quality applies to all Kinghitter post drivers, includng the Expander 2i.

Drive Posts To Ground Level | Feature Highlight

In this video, we break down the Kinghitter post driver's ability to drive posts right down to ground level. This makes them ideal for stay posts and tie-backs, and allows you to ram a post deeper into the ground for increased stability. It also means you don’t have to cut off excess post material, reducing waste and saving money on every job.

We also hear from a fencing contractor who shares why this is one of his favourite features of his Kinghitter machine, especially when working in demanding ground conditions where accuracy and efficiency matter.

*The machine shown in this video is a Series 2i 450, however, the same build quality applies to all Kinghitter post drivers, includng the Expander 2i.

Build Quality | Feature Highlight

When it comes to agricultural equipment, quality isn’t optional — it’s everything. Kinghitter post drivers, built by Farmgear in New Zealand, have been trusted for over 45 years.

What sets Kinghitter apart:

Superior components using 350-grade steel and premium materials sourced directly from Australian mills.
Every machine is fully assembled, checked, and tested for consistent performance from day one.
Purpose-built design with custom Italian valve banks for smoother control and better fencing efficiency.
Backed by Farmgear’s two-year warranty for long-term reliability.

*The machine shown in this video is a Series 2i 450, however, the same build quality applies to all Kinghitter post drivers, includng the Expander 2i.

1: Choose Your Post Rammer Package | Expander 2i

You can choose the Expander 2i as a post driver package that suits your budget and requirements. For example, the Expander 2i + Terminator Sideshift base package, or the Expander 2i + Dominator Rotational base package. Each package is built to match different fencing styles and machinery requirements, making the Expander 2i post driver a great choice for Fencing Contractors & Farmers wanting to improve their fencing game.

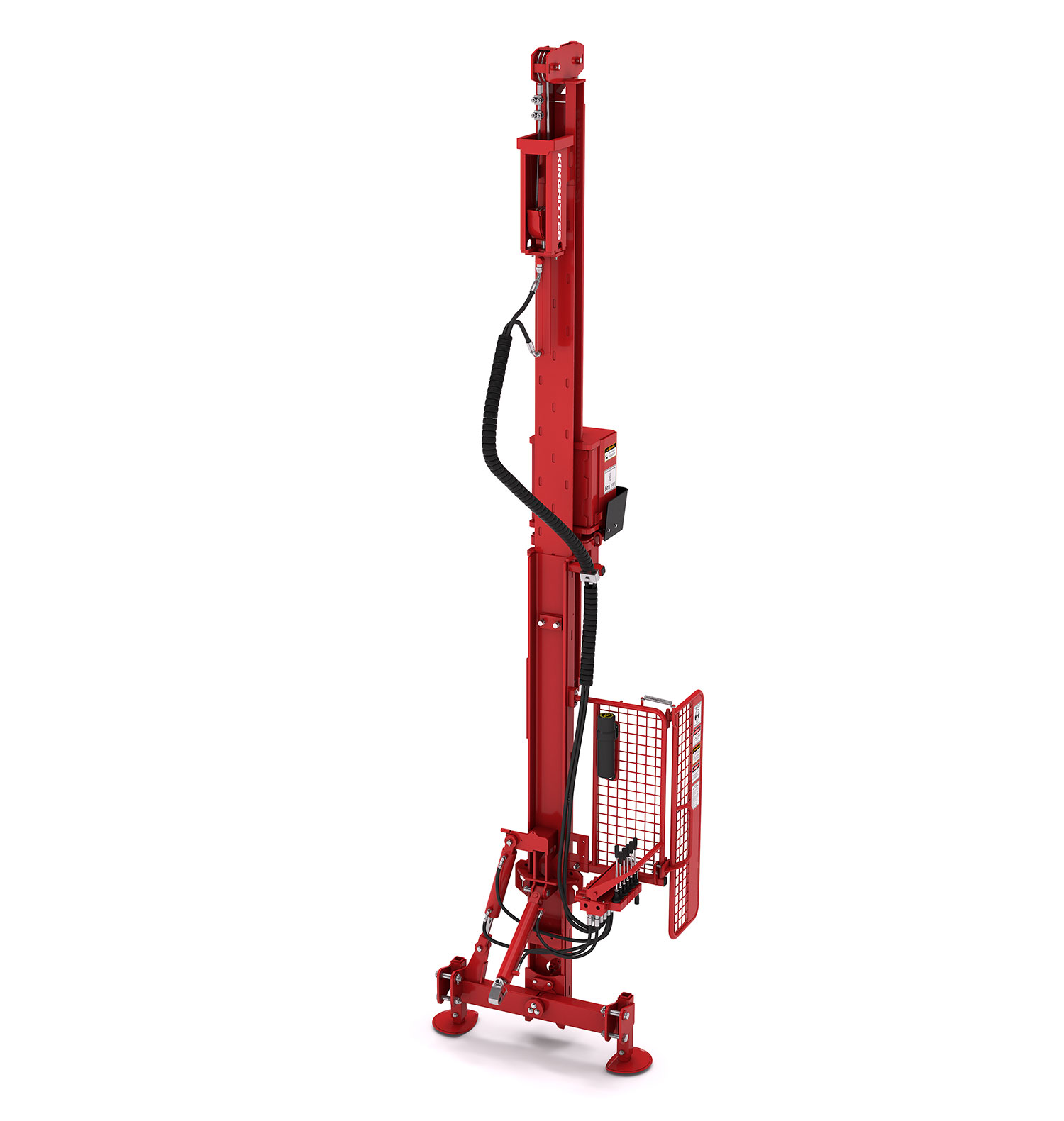

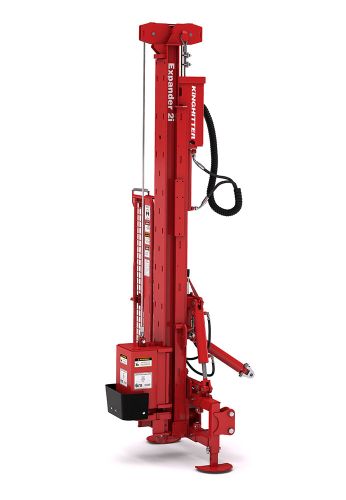

Expander 2i
.

3.2m - 5.1m Expanding Mast

300kg Hammer

Hydraulic Toplink / Sidetilt

5 Bank Valve
360° Interactive View

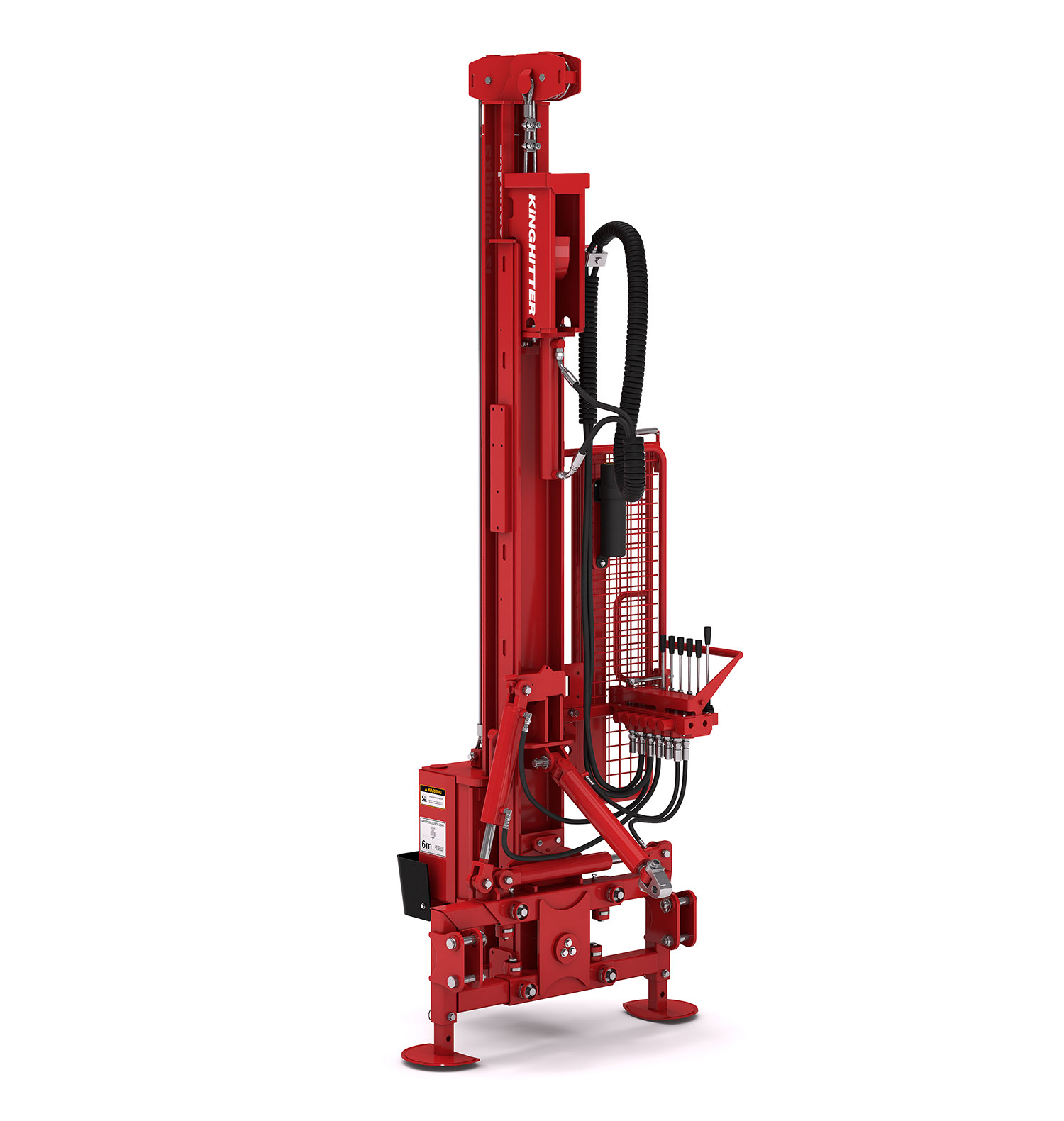

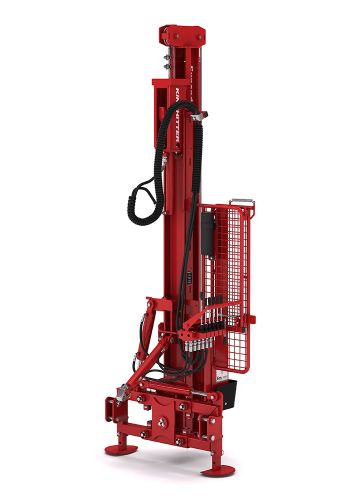

Expander 2i Mastshift Combo

3.2m - 5.1m Expanding Mast

300kg Hammer

Hydraulic Toplink / Sidetilt

6 Bank Valve

300mm Mastshift
360° Interactive View

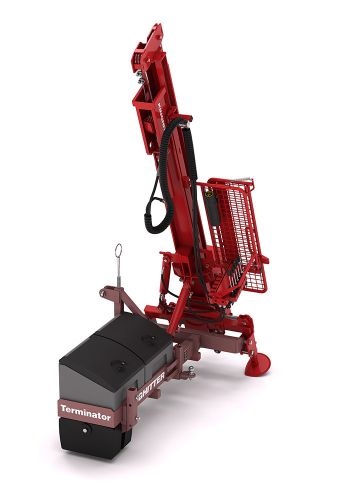

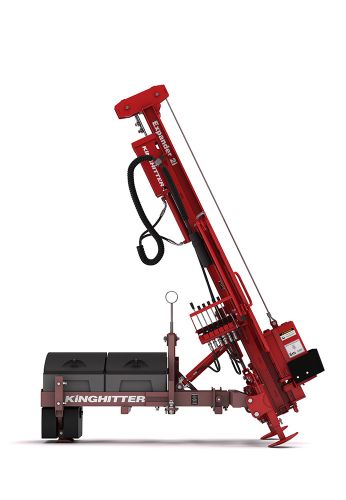

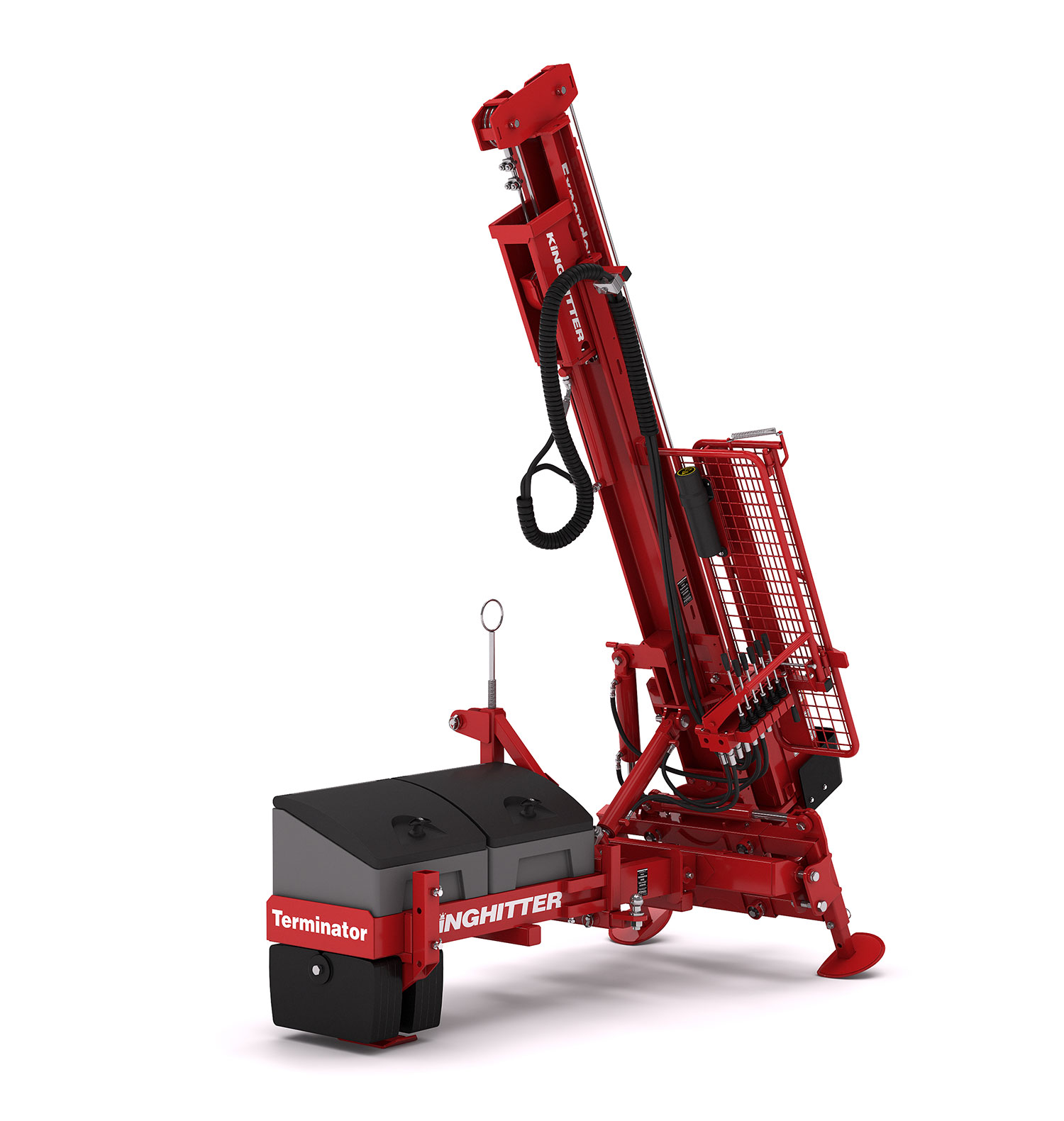

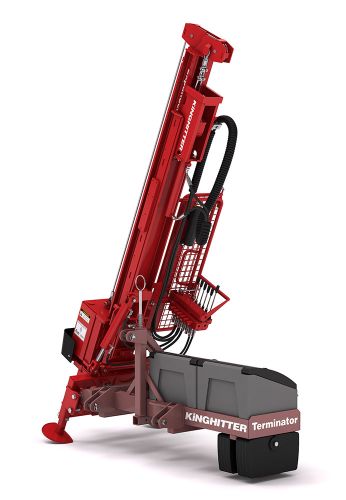

Expander 2i Terminator Combo

3.2m - 5.1m Expanding Mast

300kg Hammer

Hydraulic Toplink / Sidetilt

5 Bank Valve- Terminator Base

950mm Side Shift

120kg Counterweight

Toolbox
360° Interactive View

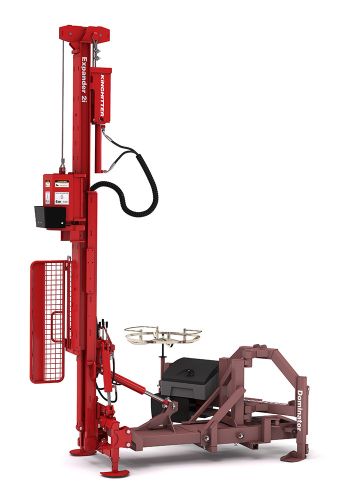

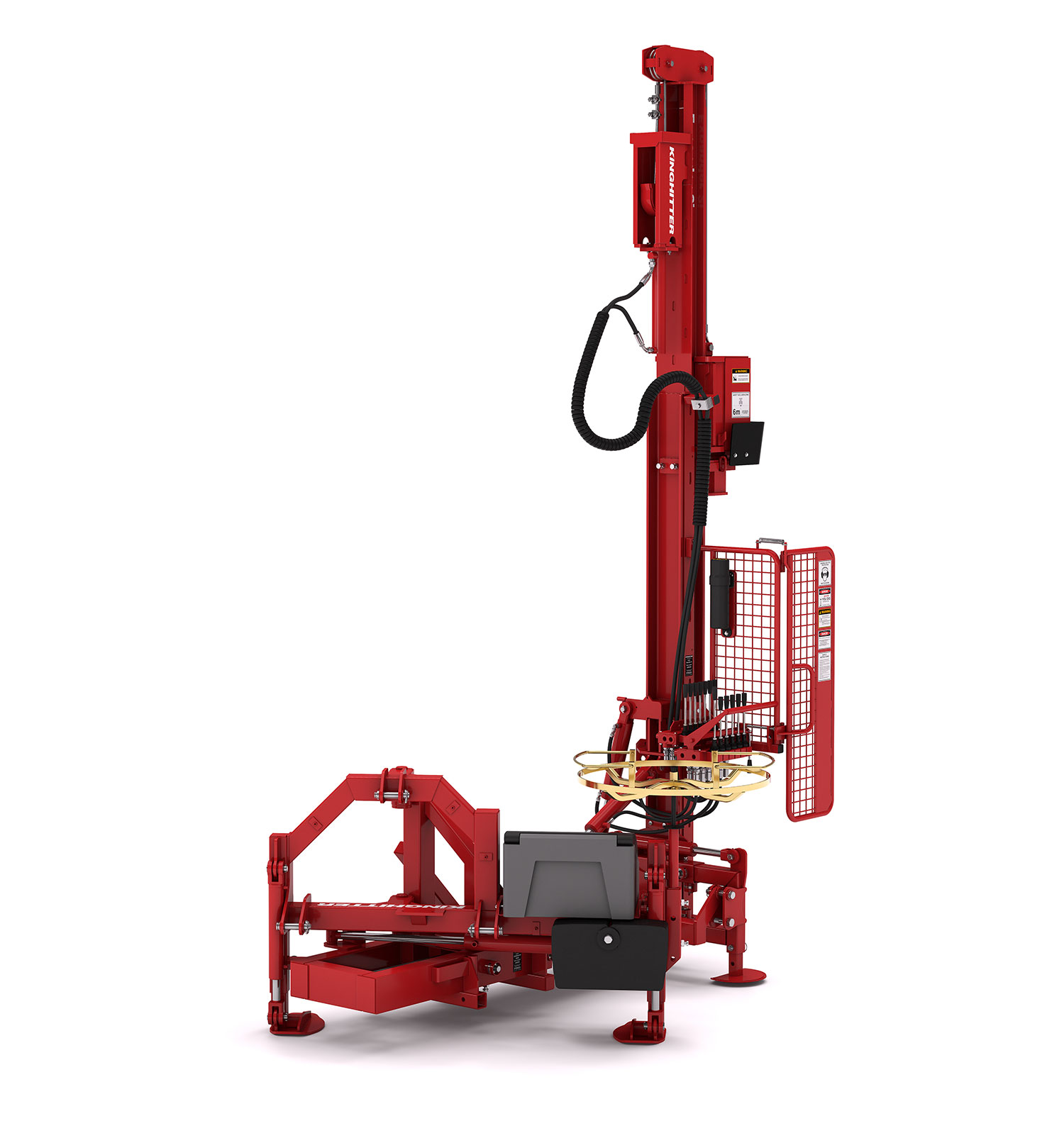

Expander 2i Dominator Combo

3.2m - 5.1m Expanding Mast
300kg Hammer
Hydraulic Toplink / Sidetilt
6 + 3 Hydraulic Valve Banks
Dominator Rotational Base
130 Degree Rotation
650mm Sliding Shift,
2x Hydraulic Legs,
Hydraulic Toplink to Tractor
Optional Counterweight
Lockable toolbox

360° Interactive View

2: Upgrade You Post Rammer Package | Expander 2i

After selecting your Expander 2i Post Hitter package, you can improve its performance with a range of upgrade options. Choose capability upgrades like the Rockspike Extractor Kit or Rockspike Extractor / Auger Combo. Each upgrade helps optimise your post driver for your fencing environment and requirements.

Auto Latch Auger Kit

The Auto-Latch Auger Kit is a powerful and user-friendly system featuring a hydraulic ram for downforce and auger extraction, along with an automatic latching mechanism for stability. Its 250cc hydraulic motor ensures fast and reliable operation, making it ideal for tough ground conditions like blue clay, hard pan, and sandstone. It's compatible with a range of anticlockwise augers and Dig/Rock Pilots for enhanced performance.

Learn More About The Auto Latch Auger Kit

Rock Spike Kit

The Rockspike Kit is designed for rocky terrain, using a solid steel spike driven by the hammer to break through rocks and create pilot holes for posts. Its 8-tonne extractor ram easily removes the spike or old posts. The hydraulic positioning ram rotates the rock spike in and out of position via the valve bank controls. Rockspikes are available in two different sizes: 90mm & 130mm.

Learn More About The Rockspike Kit

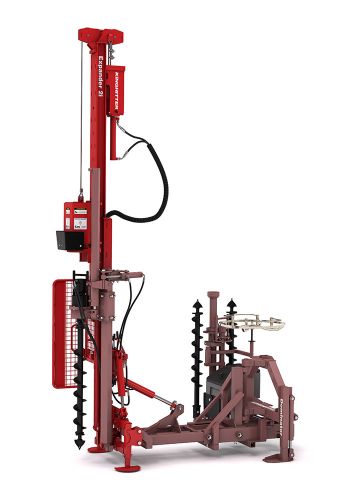

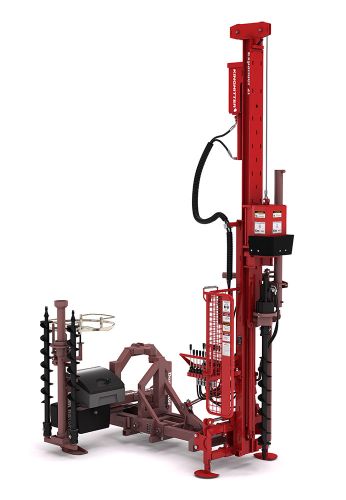

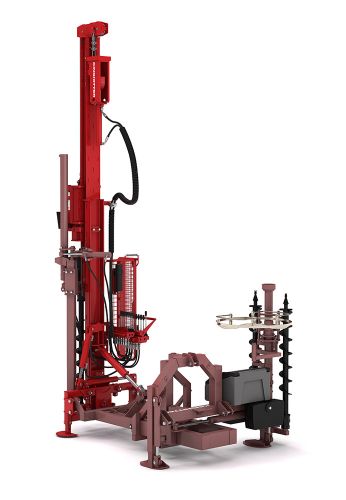

Rockspike Extractor / Auger Combo

The Rockspike Extractor/Auger Combo offers unmatched versatility, combining the rockspike extractor kit with interchangeable Rockspike and auger motor. The Auger is powered by a high-capacity 250cc hydraulic motor, which handles tough ground conditions like blue clay, hard pan, and sandstone with ease. It's compatible with a range of anticlockwise augers and Dig/Rock Pilots for enhanced performance.

Learn More About The Rockspike Extractor / Auger Combo

Rockspike Extractor / Torque Drill Combo

The Kinghitter Torque Drill delivers unmatched auger torque with a planetary gear drive and high-capacity hydraulic motor, producing 2300NM of torque. Mounted on the Rockspike Extractor Kit for stability, it can be interchanged with a Rockspike, and is fitted with a hydraulic positioner, which pivots it in & out of position using a hydraulic ram. The setup includes anticlockwise hardened augers with hard-faced or tungsten rock pilots, available in a range of sizes.

Learn More About The Rockspike Extractor / Torque Drill Combo

A YouTubers Review | Hill Country Farmer

Hill Country Farmer is a sheep and beef farmer from the North Island of New Zealand. He is based on an awesome but very steep block, and documents his day-to-day life as a farmer on his YouTube channel.

Recently, Kinghitter partnered with Hill Country Farmer, supplying him with an Expander 2i postdriver on a Dominator 130° rotational base. It’s a more advanced setup than he’d used before, but he quickly put the machine’s features to work and showed how it handles challenging terrain.

Check out the videos below to see the Kinghitter Expander 2i (Expanding Mast) post driver in action.

Why Kinghitter | Trusted for Over 45 Years

Every Series 2i rigid post driver is manufactured and assembled in Palmerston North, New Zealand, using premium components such as Italian valve banks and NZ-made hydraulic rams. Each unit is fully sandblasted, primed, and finished in a tough 2-pac coating to maximise paint life and long-term durability.

Every machine is backed by a 24-month peace-of-mind warranty and supported by a nationwide network of trusted dealers. Buying through your local Kinghitter dealer means more than just great service. It includes on-farm delivery, machine setup, trade-in and finance options, and the reassurance that help is close by whenever you need it. Dealers understand your local ground conditions and can guide you to the best setup for your region.

Buying direct from an importer of cheaper machinery or small manufacturer may look attractive (especially on price), but once the sale is made, will they still be there when you need support? Are they committed to keeping you working, or simply closing the deal? Before purchasing direct, consider the value of proper setup, operator and safety training, after-sales service, and reliable local backup.

Kinghitter In Action | Customer Testimonials

Explore stories from farmers and fencing contractors who use Kinghitter post drivers in real-world agricultural conditions. These experienced operators explain why Kinghitter machinery is their go-to solution for durability, safety, and performance.

In these testimonial videos, you'll hear firsthand how Kinghitter equipment like the Series 2i, Expander 2i, and the Terminator and Dominator Bases are improving on-farm efficiency and delivering long-term value. Our customers share their fencing setups and the key features that set Kinghitter post drivers apart from the rest.
